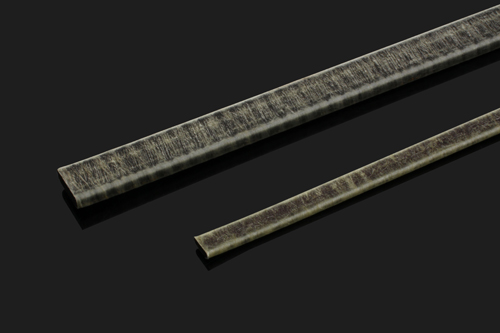

Film Wrapped Enameled Wire
◆Introduction：The product is the premium copper or aluminum to be enameled, then to be wrapped with polyester film or polyimide film so as to enhance the breakdown voltage of enameled wire. It has the advantages of thin insulation thickness, high voltage resistance. The product is the ideal material for electrical instruments of small size, large power, high reliability.
Details
◆ Production Range：
Copper or Aluminum rectangular Wire
Narrow side size a : 0.80mm—5.60mm
Broad side size b : 2.00mm—16.00mm
Copper or Aluminum Round Wire
Diameter：φ1.7—φ5.0
If specification is out of range, please
don’t hesitate to contact us.
◆ Material：
Aluminum rectangular Wire should conform to GB5584.3-2009，the resistivity(20℃) is no more than 0.0280Ωmm2/m
Copper rectangular Wire should conform to GB5584.2-2009，the resistivity(20℃) is no more than 0.017241Ωmm2/m
