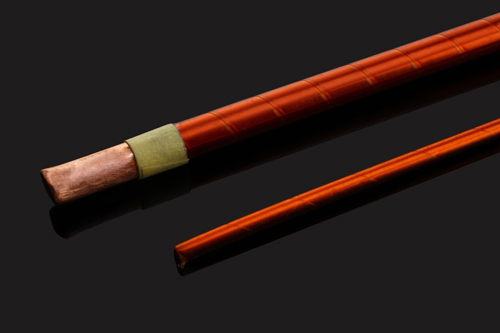

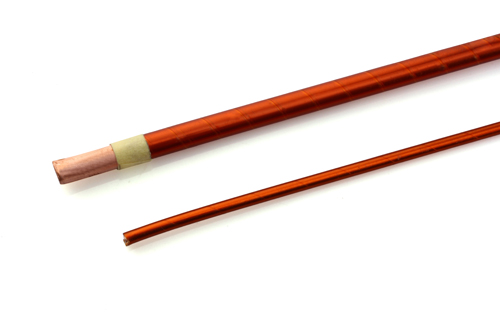

Polyimide Film Wrapped Wire
◆Introduction：This product is premium copper or aluminum conductor, evenly wrapped with polyimide film or polyimide, fluorine 4.6 composite film. Fluorine 4.6 can be melt and make a whole with the film and conductor after heated. It has strong voltage resistance, thin thickness and thermal class up to 220℃. The product is widely applied in electric machines、reactors、electric welding machines and similar electrical instruments. The electrical bare copper or aluminum wire with extrusion process is the ideal material for polyimide film wrapped copper or aluminum wire.
Details
◆Standard：GB/T7673-2008 & Enterprise Standard
◆ Production Range：
Aluminum Rectangular Wire
Narrow side size a : 1.00mm—8.00mm
Broad side size b : 3.00mm—25.00mm
Copper Rectangular Wire
Narrow side size a : 0.80mm—5.60mm
Broad side size b : 2.00mm—16.00mm
Copper or Aluminum Round Wire
Diameter：φ1.7—φ8.0
If specification is out of range, please don’t hesitate
to contact us.
◆ Material：
Aluminum rectangular wire should conform to GB5584.3-2009，the resistivity (20℃) is no more than 0.0280Ωmm2/m
Copper rectangular wire should conform to GB5584.2-2009，the resistivity (20℃) is no more than 0.017241Ωmm2/m
