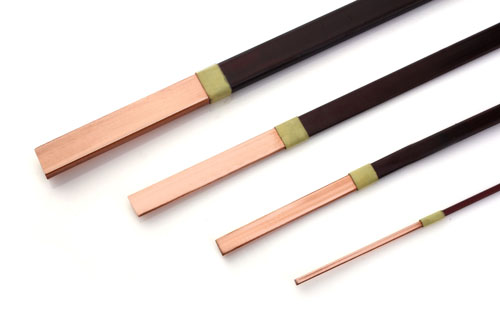

Rectangular Copper Enameled Wire
120 degree flat enameled wire for oil-immersed transformer
130, 155, 180 degree flat enameled wire are widely used in all kinds of magnet coil
200 degree flat enameled wire works constantly in high temperature
240 degree flat enameled wire for magnet coils of aviation, military and marine application
Flat wire width: 2.00-16.00 mm
Width/ thickness ratio: 1.4＜w/t＜8.0
Details
Among all of its high-tech magnet wire products, ZOTO offers a complete range of rectangular enameled wire with copper or aluminum as the conductor:
ZOTO’s rectangular wires can be supplied in the wire cross-section ranges from 2-80 mm².
